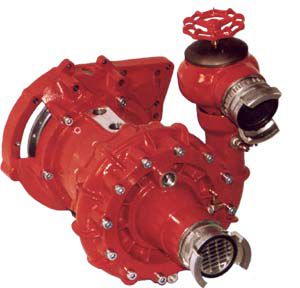

Type G45/10
Power pump version fire pump
Characteristics
- Nominal flowrate : 750 l/mn
- Nominal pressure : 10 bar at 3800 rpm
- Dimensions : L=428-H=348-W=350
- Service weight : 61 Kg
Specific features

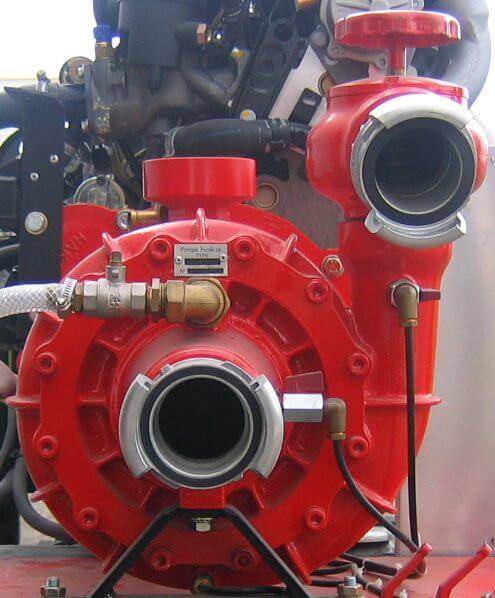

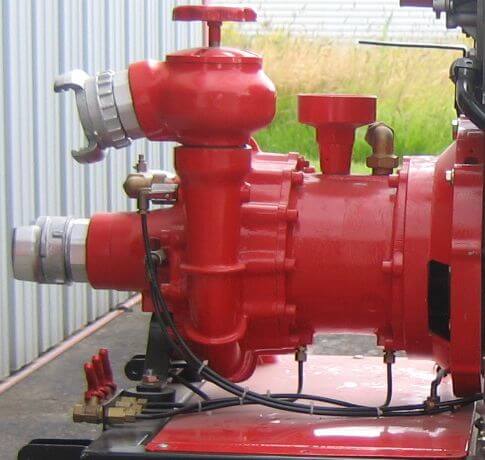

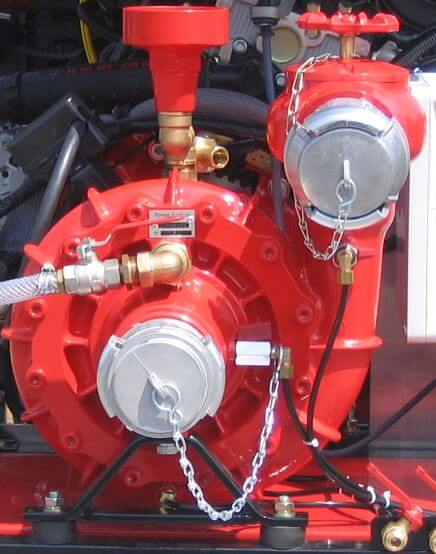

For fitting onto a vehicle-mounted or trailer fire pump. This model is fitted with a housing for flange fitting to the engine, a clutch transmission and a coupling flange.
- Single-cell centrifugal pump.
- Material : turbine, vacuum box flange, vacuum box and impeller made of UE12 bronze.
Volute and nose made of UE12 bronze, stainless steel shaft. - Feed diameter : 1*ND 65.
- Discharge diameter : 1*ND 65.
- Primer : electric.
- Option : Water ring primer. Manual priming system composed of a ball plug valve and a non-return valve or an automatic priming valve.
