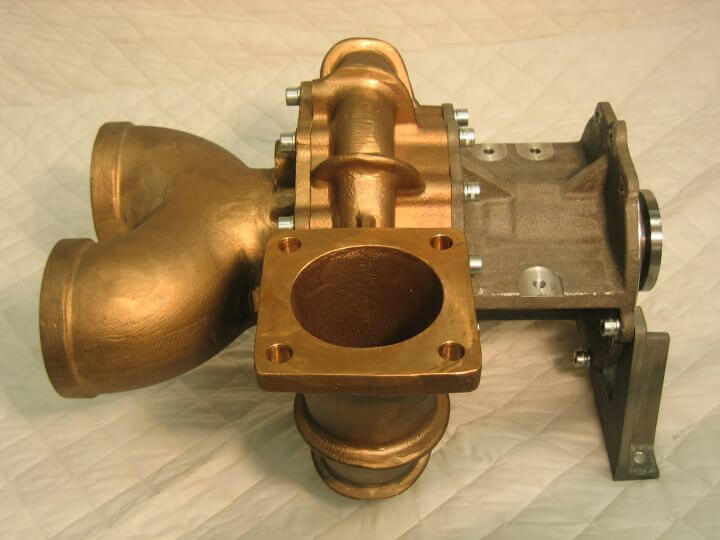

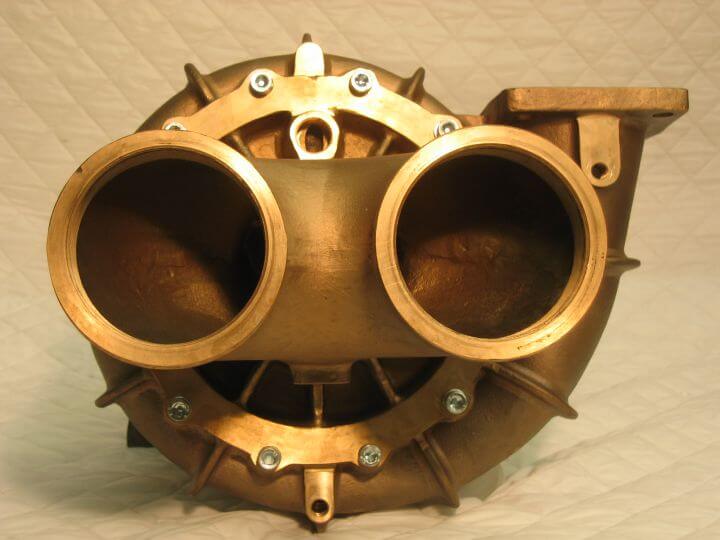

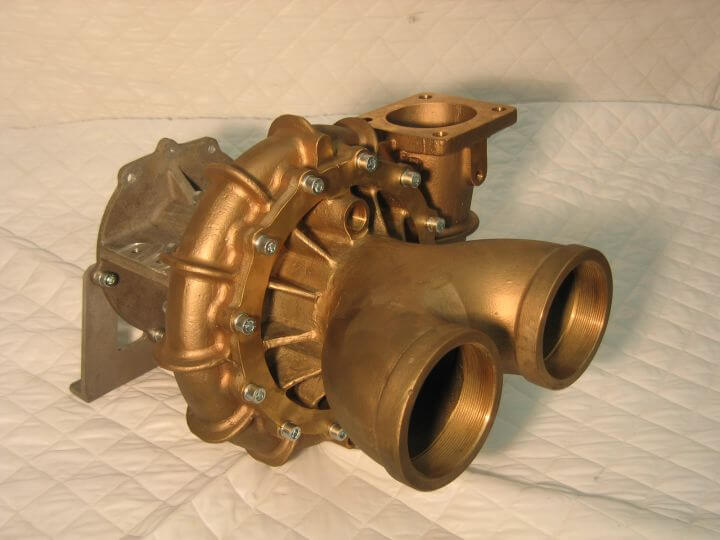

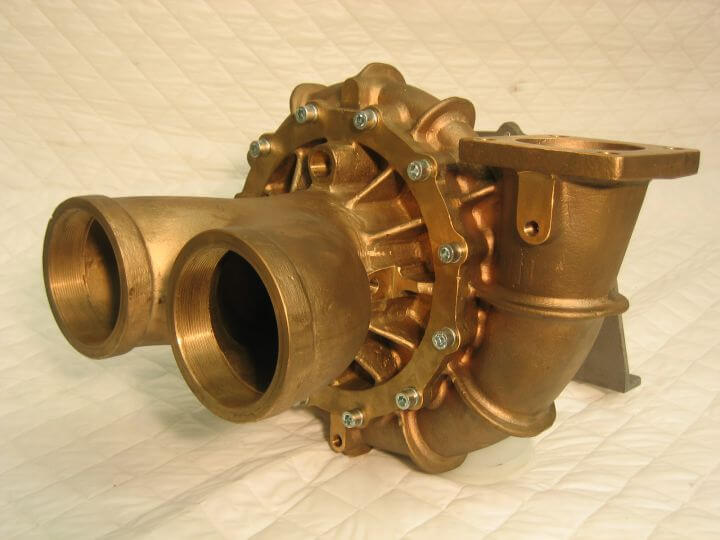

Type V120/15

Vehicle-mounted fire pump

Characteristics

  • Nominal flowrate : 2000 l/mn
  • Nominal pressure : 10 bar at 4300 rpm - 15 bar at 4500 rpm
  • Dimensions : L=520-H=410-W=480
  • Service weight : 77 Kg

Specific features

For fitting on a vehicle chassis cross-member, driven by power-take-off. This model is fitted with a pump support cradle and a coupling flange.

  • Single-cell centrifugal pump.
  • Material : turbine, vacuum box flange, vacuum box and impeller made of UE12 bronze.
    Volute and nose made of UE12 bronze, stainless steel shaft.
  • Feed diameter : 2*ND 100.
  • Discharge diameter : 1*ND 100.
  • Primer : electric.



  • Option : Water ring primer. Manual priming system composed of a ball plug valve and a non-return valve or an automatic priming valve.
